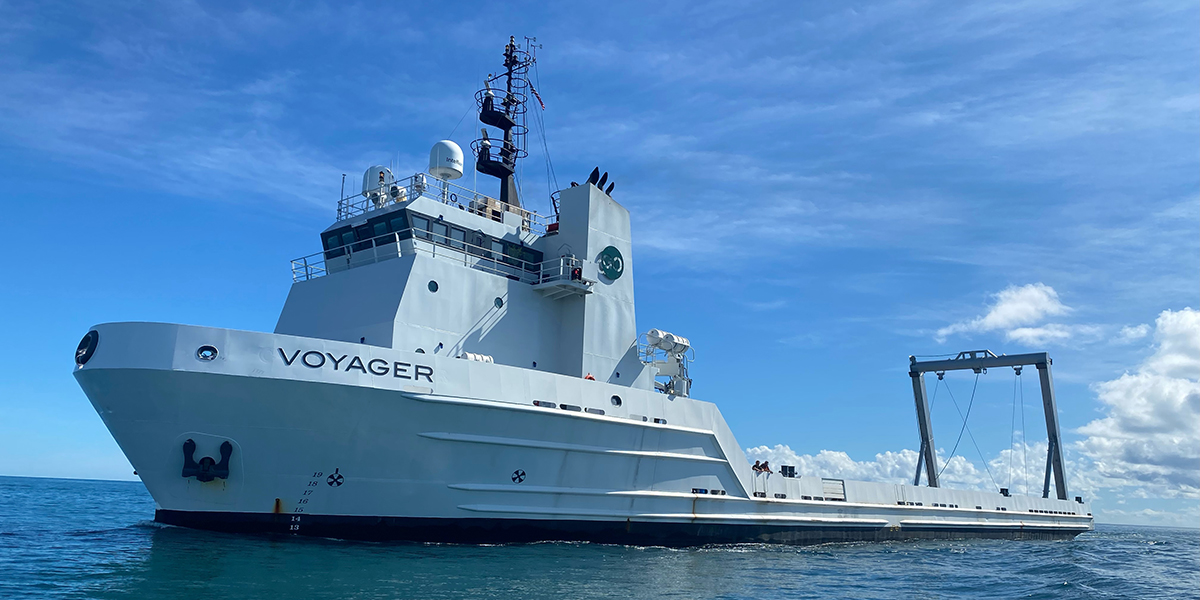

The VOYAGER is a 294 ft x 56 ft Multi-Purpose Vessel, extensively modified and upgraded to properly support specialized operations in any water depth for our broad customer base. The VOYAGER features Caterpillar 3516 engines, berthing for 42, multiple offices, lounges, and a hospital, along with a 15-ton Man-Rated A-Frame, HPU, winches and telescoping deck crane. She is ABS classed DPS-2, certified Subchapter I, circle E and unrestricted ocean service for domestic and international operations.

SPEC SHEET

HULL SPECIFICATIONS

Length: 294′
Beam: 56′
Depth: 18’9
Draft Max: 14’6
Clear Deck: 222′ X 53’4

CAPACITIES

Deck Cargo: 1,250LT
Deck Strength: 540lbs ft2
Potable Water: 36,620 usg
Fuel: 129,466 usg
Ballast Water: 657,873 usg

PROPULSION

Main Engines: 2 x Caterpillar 3516
Total HP: 3,420 bhp
Stern Thruster: 2 x Ulstein Azimuthing
Bow Thruster #1: 850 hp CPP tunnel thruster
Bow Thruster #2: 1,200 bhp Dropdown
Generators: 3 x 300 kW, 1 x 105 kW

DOCUMENTATION

Flag: US, Sub I ON 1059074
Class: ABS †A1, †AMS, †DPS 2, Loadline (unrestricted ocean service) Circle E
Yard: Master Boatbuilders
Builder: North American Shipyard
Delivery Date: Built 1998 / Modified 2023

PERFORMANCE

Cruise: 11kts 140 gph, 529.9 l/hr
Max: 13 kts 240 gph, 908.5 l/hr

ACCOMMODATIONS

Certified to Carry: 42
Staterooms: 16
Heads: 9
Lounge Area: Yes
Hospital: Yes
Walk in Cooler: Yes
Walk in Freezer: Yes

ELECTRONICS

Radars: 2 x Furuno
Auto Pilot: Yes
GPS (Navigation): Yes
Echo Sounder: Yes
VHF Radios: 4 x Fixed Mounted, 3 x Emergency Handheld GMDSS VHF’s
Dynamic Positioning: Marine Technologies – DP2
DP Reference System: 2 x Fugro DGPS, 1 x Fanbeam
Electronic Plotter: Yes
Sat Communication: Vsat / Direct TV
SSB: Yes

SPECIAL EQUIPMENT

Firefighting: 1 x 5,280 GPM monitor
Ship Motion: 2 x Passive Type Anti-Roll Tanks
Ship Motion: 2 x Passive Type Anti-Roll Tanks
EBI TC20 Telescoping Crane: Max Load – 17,940lbs, Personel Rated – 8,970lbs
A-Frame: Stern mounted
Rescue Boat and Davit: Yes
