Guice Offshore Oil and Gas Supply Vessel

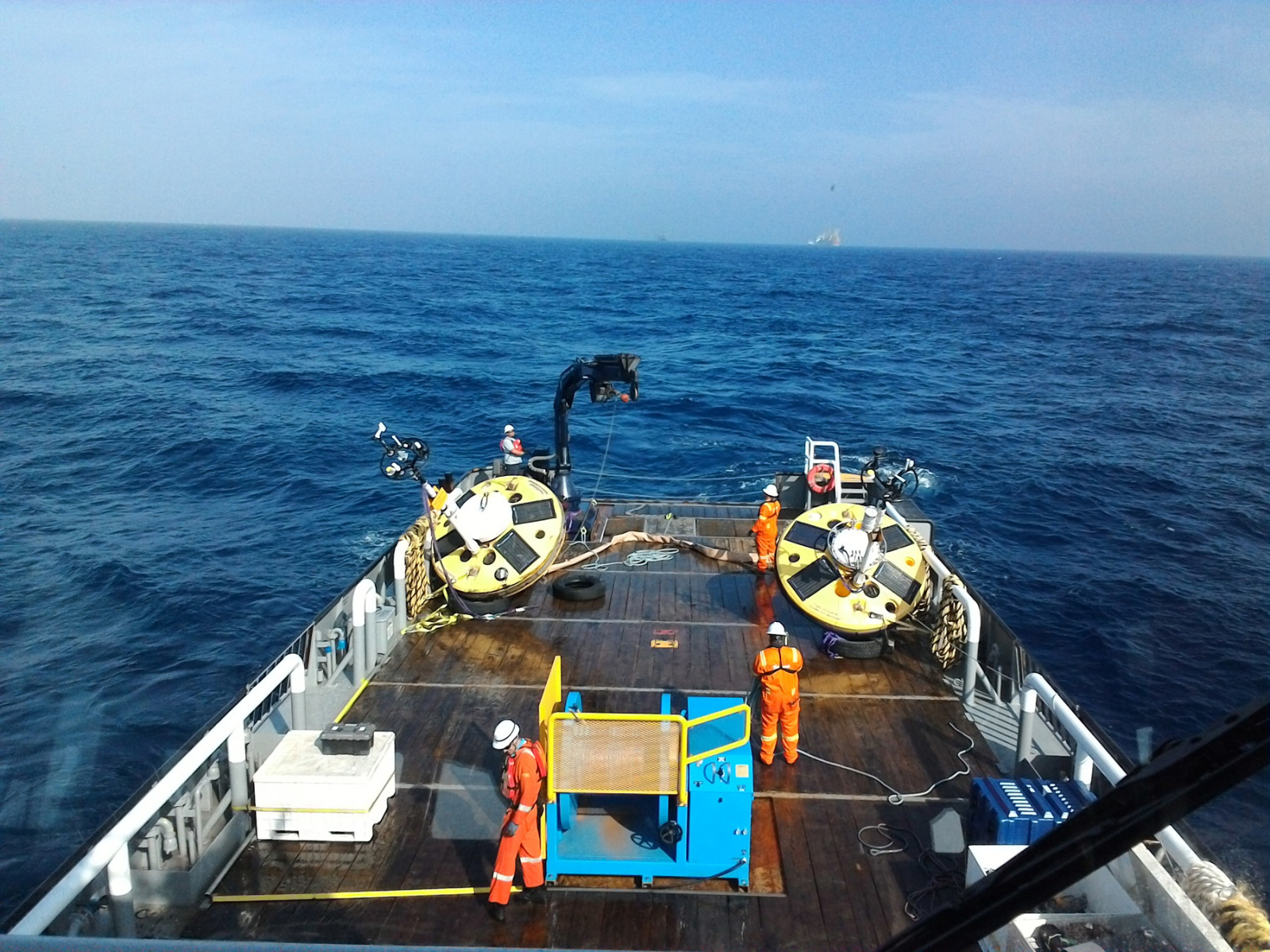

A true workhorse of the Oil and Gas industry, the GO Patriot is a Master Boat Builder 150 class DP1 mini supply with 20 bunks. She has leading below deck capacities for her class and is often employed in support of diving inspections, production runs and platform projects.

SPEC SHEET

HULL SPECIFICATIONS

Length: 150′
Beam: 36′
Depth: 12′
Draft Max: 10′
Clear Deck: 90′ X 30′

CAPACITIES

Deck Cargo: 335LT
Potable Water: 8,900 usg
Fuel: 32,000 usg / 84,500 usg*
Ballast Water: 53,600 usg
Liquid Mud: 1,250 bbls
Methanol: 36,000 usg

* fuel capacity when utilizing Liquid Mud tanks

PROPULSION

Main Engines: 2 x Cat 3508
Total HP: 1,70 HP
Reduction Gears: Twin Disc
Generators: 2 x 120 kW, 480vt
Bow Thruster: Diesel Driven, 300 HP Cat

ACCOMMODATIONS

Certified to Carry: 20
Cabins / Berths: 6/20
Walk in Cooler: Yes
Walk in Freezer: Yes
Ice Machine: Yes

ELECTRONICS

Radars: Yes x 2
Auto Pilot: Beier Integrated Systems
GPS (Navigation): Yes
Echo Sounder: Yes x 1
VHF Radios: Yes x 3
Dynamic Positioning: Beier Integrated Systems
OP Reference System: DGPS
Electronic Plotter: Yes
Sat Communication: Vsat / Direct TV

SPECIAL EQUIPMENT

Fire Monitor: Yes

DOCUMENTATION

Flag: USCG, ON 1150827
Class: ABS Loadline, USCG Sub “L”
Yard: Master Boats
Delivery Date: 2004
